MENNEKES

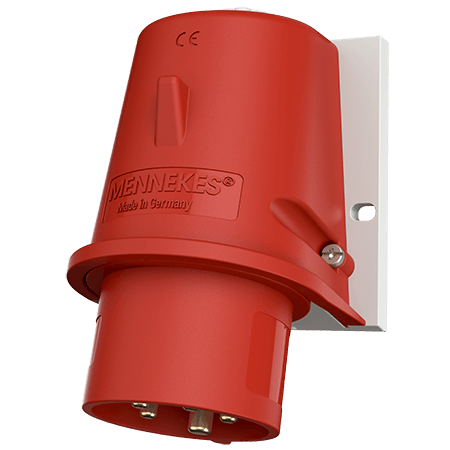

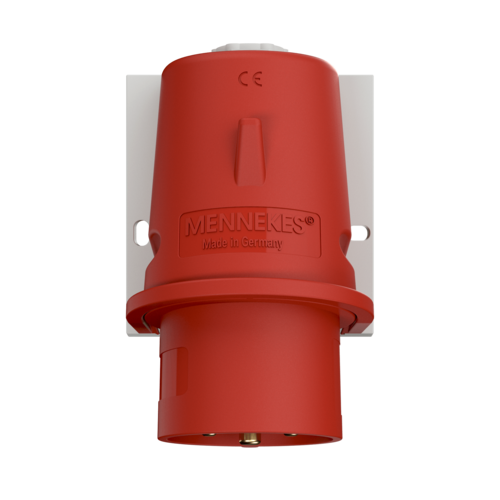

Wall mounted phase inverter inlet 3523

Poles
Voltage
Clock position
  • screw terminals
  • external fixing
  • Part no.3523
  • EAN4015394215769
  • Std. Pack. 10 Qty.

Technical specifications

Wall mounted phase inverter inlet 3523

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 44
Weight 320 g
Declaration of Conformity VDE
EAC

Appropriate accessories

Wall mounted phase inverter inlet 3523

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p up to 125 A, 5 p, not suitable for low voltage
