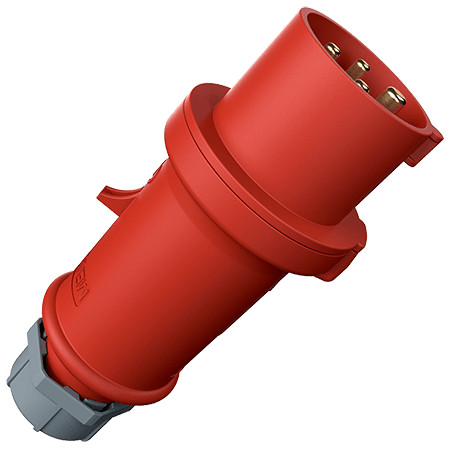

Plug StarTOP® with SafeCONTACT 952

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screwless, with insulating displacing technique
  • cable gland and sealing
  • strain relief and protection against kinking
  • enclosure with thread lock and safety slide
  • Part no.952
  • EAN4015394183549
  • Std. Pack. 10 Qty.

Technical specifications

Plug StarTOP® with SafeCONTACT 952

Ampere 16 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screwless - SafeCONTACT
Contact standard
Protection type IP 44
Weight 187 g
Declaration of Conformity VDE
EAC
CQC

Datasheets & Downloads

Plug StarTOP® with SafeCONTACT 952

Product info Plug StarTOP® with SafeCONTACT 952 PDF, 135 KB
CAD data STP Plug StarTOP® with SafeCONTACT 952 ZIP, 999 KB
CAD data 3D DWG Plug StarTOP® with SafeCONTACT 952 ZIP, 742 KB
Dimensional drawing portrait Plug StarTOP® with SafeCONTACT 952 PNG, 72 KB
Dimensional drawing landscape format Plug StarTOP® with SafeCONTACT 952 PNG, 72 KB

Mounting instruction video

Video mounting instructions

Appropriate accessories

Plug StarTOP® with SafeCONTACT 952

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p up to 125 A, 5 p, not suitable for low voltage
