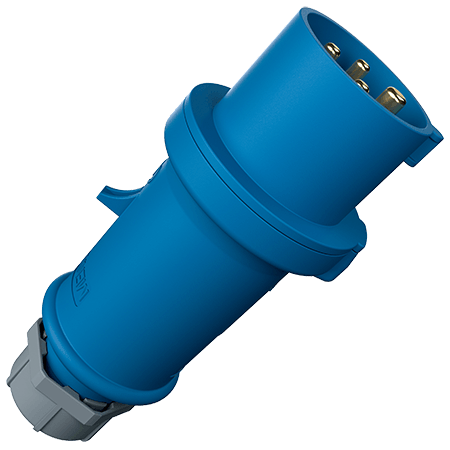

Plug StarTOP with SafeCONTACT 717

Poles
Voltage
Clock position
  • screwless, with insulation displacement technology
  • cable gland and sealing
  • strain relief and protection against kinking
  • enclosure with thread lock and safety slide
  • Part no.717
  • EAN4015394230809
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Plug StarTOP with SafeCONTACT 717

Ampere 32 A
Poles 4 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screwless - SafeCONTACT
Contact standard
Protection type IP 44
Weight 296 g
Declaration of Conformity EAC
CQC

Mounting instruction video

Please accept marketing-cookies to watch this video.

Video mounting instructions

Appropriate accessories

Plug StarTOP with SafeCONTACT 717

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p up to 125 A, 5 p, not suitable for low voltage
