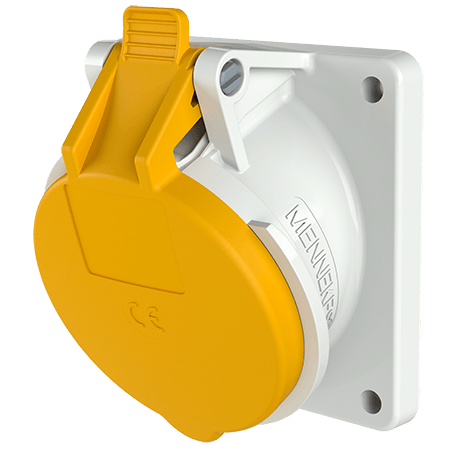

Panel mounted receptacles with TwinCONTACT 3004

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screwless spring terminals
  • standard flange dimensions
  • 20° inclination
  • receptacles are designed for adding an auxiliary contact switch
  • Part no.3004
  • EAN4015394221623
  • Std. Pack. 10 Qty.

Technical specifications

Panel mounted receptacles with TwinCONTACT 3004

Ampere 16 A
Poles 3 p
Voltage 110 V
Clock position 4 h
Hertz 50-60 Hz
Connection technology Screwless - TwinCONTACT
Contact standard
Protection type IP 44
Flange 85x85 mm
Fixing hole 70x70 mm
Inclination 20 °
Weight 120 g
Declaration of Conformity VDE
EAC

Datasheets & Downloads

Panel mounted receptacles with TwinCONTACT 3004

Product info Panel mounted receptacles with TwinCONTACT 3004 PDF, 178 KB
Dimensional drawing portrait Panel mounted receptacles with TwinCONTACT 3004 PNG, 100 KB
Dimensional drawing landscape format Panel mounted receptacles with TwinCONTACT 3004 PNG, 101 KB

Mounting instruction video

Video mounting instructions

Appropriate accessories

Panel mounted receptacles with TwinCONTACT 3004

Auxiliary contact block

Part no. 41000

for receptacles and panel mounted receptacles 16 A and 32 A of product groups 1018, 1019, 1041, 1049, 1132, 1141, 1146 and 1148 as well as 32 A of product groups 1044, 1048, 1133 and 1135, funktion: change-over contact = NC/NO, connected load: 16 A (inductive 4 A), 250 V AC
