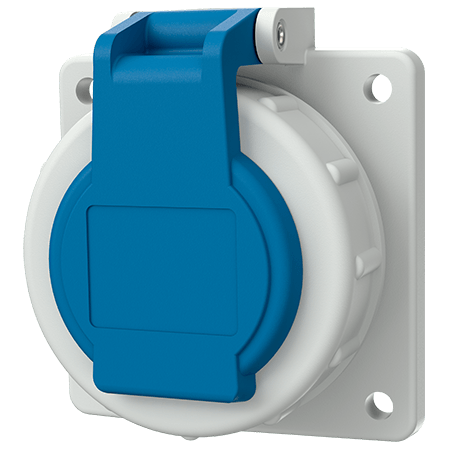

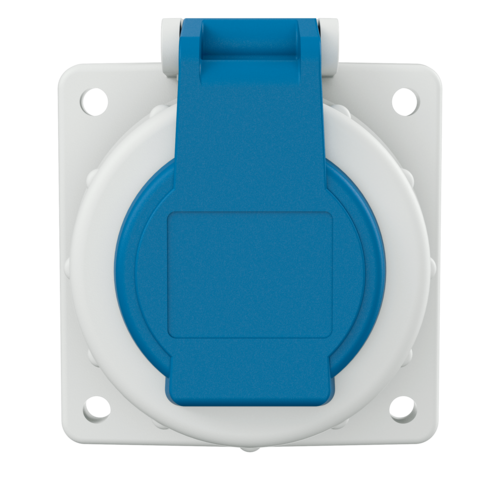

MENNEKES Panel mounted receptacle SCHUKO® 17014
MENNEKES Panel mounted receptacle SCHUKO® 17014 images3d

Panel mounted receptacle SCHUKO® 17014

Ampere 16 A
Poles
Voltage
  • screw terminals or plug-in terminals
  • hinged bayonet lock lid
  • rectangular flange
  • four fixing holes
  • Part no.17014
  • EAN4015394288091
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle SCHUKO® 17014

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Connection technology Screw terminals
Contact standard
Protection type IP68
Shutter Yes
Flange 75x75 mm
Fixing hole 60x60 mm
Weight 108 g
Declaration of Conformity VDE
EAC

Datasheets & Downloads

Panel mounted receptacle SCHUKO® 17014

Product infoPanel mounted receptacle SCHUKO® 17014 PDF, 156 KB
CAD data STPPanel mounted receptacle SCHUKO® 17014 ZIP, 903 KB
CAD data 3D DWGPanel mounted receptacle SCHUKO® 17014 ZIP, 2 MB
Dimensional drawing portraitPanel mounted receptacle SCHUKO® 17014 PNG, 38 KB
Dimensional drawing landscape formatPanel mounted receptacle SCHUKO® 17014 PNG, 37 KB

Frequently asked questions about the product

Why are no seals supplied with panel-mounted SCHUKO® receptacles?

Our panel-mounted SCHUKO® receptacles have a moulded sealing lip and require no separate seal to guarantee that protection class IP44 requirements are met.
