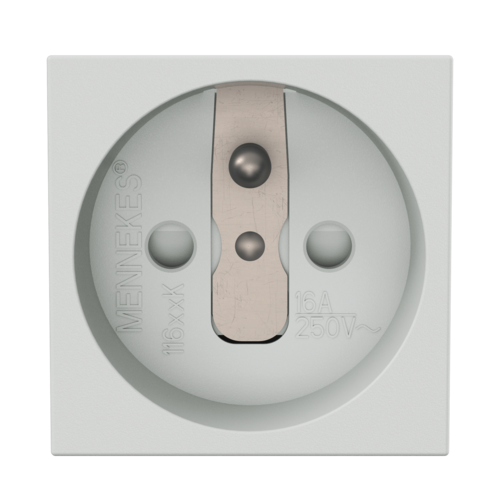

Grounding-type snap-in receptacle 11665K

Ampere 16 A

Poles

Voltage

French-belgien standard
without hinged lid
3 plug-in terminals as connecting terminals for 1.5 – 2.5 mm²

for easy installation in a cable duct or an enclosure
for fixing on DIN rails with fixing rack 11254

Part no.11665K
EAN4015394201953
Std. Pack. 100 Qty.

Technical specifications

Grounding-type snap-in receptacle 11665K

Ampere	16 A
Poles	2 p+E
Voltage	230 V
Connection technology	Plug-in terminals
Contact	standard
Protection type	IP 20
Shutter	Yes
Flange	45x45 mm
Weight	32 g
Declaration of Conformity	EAC

Dimensional drawing landscape format

Datasheets & Downloads

Grounding-type snap-in receptacle 11665K

Product info Grounding-type snap-in receptacle 11665K PDF, 192 KB

CAD data STP Grounding-type snap-in receptacle 11665K ZIP, 738 KB

CAD data 3D DWG Grounding-type snap-in receptacle 11665K ZIP, 976 KB

Dimensional drawing portrait Grounding-type snap-in receptacle 11665K PNG, 61 KB

Dimensional drawing landscape format Grounding-type snap-in receptacle 11665K PNG, 61 KB

Appropriate accessories

Grounding-type snap-in receptacle 11665K

Fixing rack

Part no. 11254

for fixing of snap-in receptacles on DIN rails
