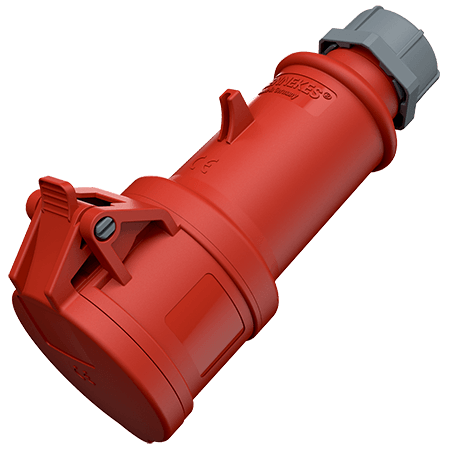

MENNEKES Connector StarTOP with SafeCONTACT 994

Connector StarTOP with SafeCONTACT 994

Poles
Voltage
Clock position
  • screwless, with insulation displacement technology
  • X-CONTACT
  • cable gland and sealing
  • strain relief and protection against kinking
  • enclosure with thread lock and safety slide
  • Part no.994
  • EAN4015394183556
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Connector StarTOP with SafeCONTACT 994

Ampere 16 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screwless - SafeCONTACT
Contact standard
Protection type IP44
Weight 228 g
Certifications VDE
EAC

Directives

Connector StarTOP with SafeCONTACT 994

Frequently asked questions about the product

What does a 6 o'clock position indicate?

The clock position indicates the position of the protective earth (PE) conductor contact on the live end. More information can be found here
