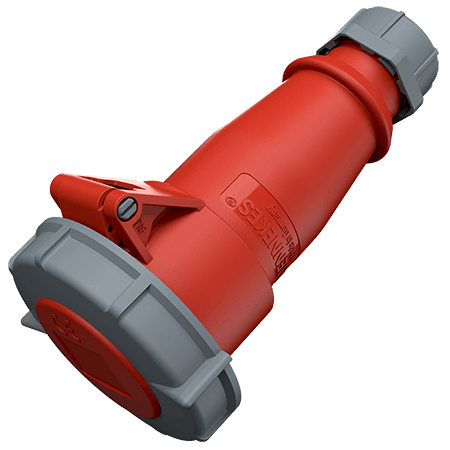

MENNEKES Connector AM-TOP 541

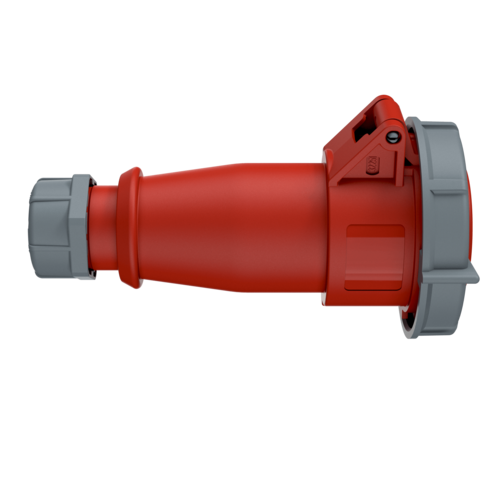

MENNEKES Connector AM-TOP 541 images3d

Connector AM-TOP 541

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • single part body
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.541
  • EAN4015394003960
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Connector AM-TOP 541

Ampere 16 A
Poles 3 p
Voltage 400 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Weight 191 g
Declaration of Conformity EAC
CQC

Datasheets & Downloads

Connector AM-TOP 541

Product infoConnector AM-TOP 541 PDF, 130 KB
CAD data STPConnector AM-TOP 541 ZIP, 991 KB
CAD data 3D DWGConnector AM-TOP 541 ZIP, 2 MB
Dimensional drawing portraitConnector AM-TOP 541 PNG, 71 KB
Dimensional drawing landscape formatConnector AM-TOP 541 PNG, 71 KB

Instructions

Mounting instructions Connector AM-TOP 541 PDF, 2 MB
