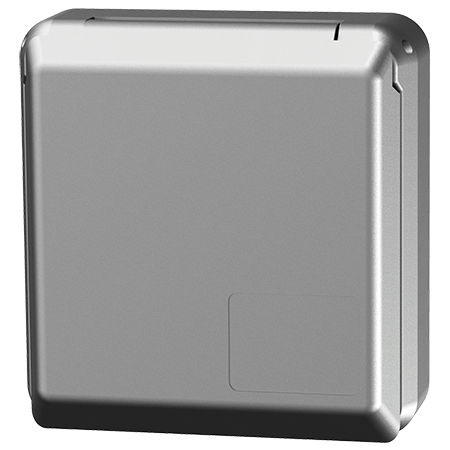

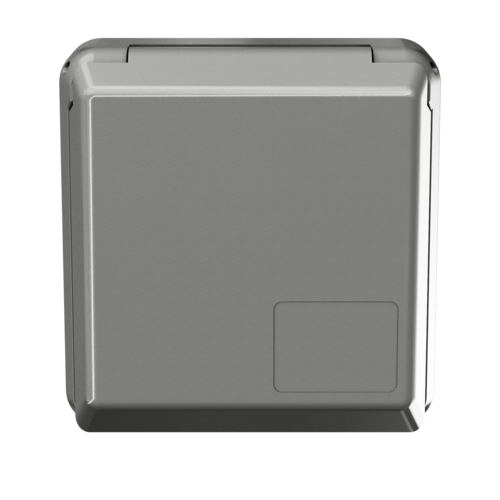

Cepex grounding-type panel mounted receptacle 4904

Ampere 16 A

Poles

Voltage

french-belgian standard
screw terminals

for installation in cable ducts and collumns
meeting DIN 18032 standards for ball rebound

Part no.4904
EAN4015394231202
Std. Pack. 5 Qty.

Technical specifications

Cepex grounding-type panel mounted receptacle 4904

Ampere	16 A
Poles	2 p+E
Voltage	230 V
Hertz	50-60 Hz
Protection type	IP 44
Shutter	Yes
Weight	140 g
Declaration of Conformity	EAC (Zwangszulassung)

Dimensional drawing landscape format

Datasheets & Downloads

Cepex grounding-type panel mounted receptacle 4904

Product info Cepex grounding-type panel mounted receptacle 4904 PDF, 186 KB

Dimensional drawing portrait Cepex grounding-type panel mounted receptacle 4904 PNG, 55 KB

Dimensional drawing landscape format Cepex grounding-type panel mounted receptacle 4904 PNG, 55 KB

Appropriate accessories

Cepex grounding-type panel mounted receptacle 4904

Flush mounted installation box

Part no. 41404

for Cepex CEE receptacles 16 A and 32 A and Cepex receptacles SCHUKO®, can be combined with all Cepex panel mounted receptacles
