MENNEKES

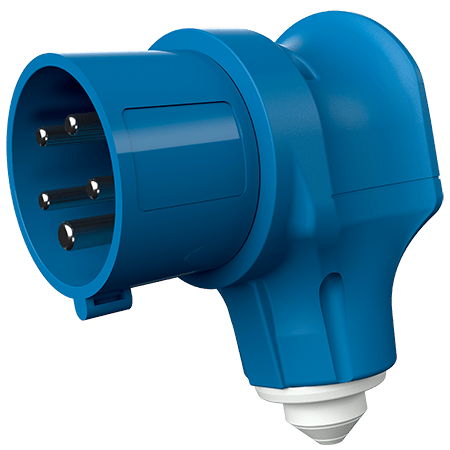

Angled plug VarioTOP 3981

Ampere 16 A
Poles
Voltage
Clock position
  • screw terminals
  • nickel plated contacts
  • cable entry hood rotating up to 60° to the left or right
  • with grommet
  • cable entry hood in colour code
  • especially suited for use with receptacles of the Cepex range
  • Part no.3981
  • EAN4015394100171
  • Std. Pack. 10 Qty.

Technical specifications

Angled plug VarioTOP 3981

Ampere 16 A
Poles 5 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
Protection type IP 44
Weight 182 g
Declaration of Conformity DE,VDE
CN,CQC

Datasheets & Downloads

Angled plug VarioTOP 3981
