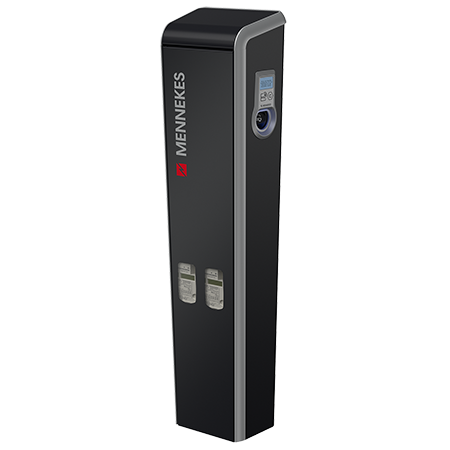

Charging column Premium 22 overvltg.
Premium charging systems are ideally suited to public spaces that call for high availability and protection against vandalism. A plain text display and one-hand outlet operation maximize user friendliness. Billing and payment systems like MENNEKES ativo, for example, can be easily integrated via an eMobility gateway. Load management and calibration-law compliance are standard features of these systems. A Premium column can also be integrated into a Smart charging column as an agent/slave.
- Access with RFID charging card
- Load management
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
- Please enter a list name
- The list name already exists
- Please enter a valid list name
Details
General data
| Authorisation |
Autostart (without access protection) RFID |
|---|---|
| Load management |
Static load management |
| Networking |
network Rs485 External Gateway network Rs485 Smart Gateway |
| Interface backend communication |
via RS485 to Gateway via RS485 to Smart charging systems |
| Communication with vehicle |
IEC 61851-1 Mode 3 |
| Product colour |
black (RAL 9005) |
Electrical data
| Connection |
1 -phase 3 -phase |
|---|---|
| Maximum charging power per charging point |
22 kW |
| Lightning and surge protection device |
Type 2 surge protection device |
| Personal protection |
40 / 0,03A, 4p, type B |
| Line protection |
C-32A, 3p+N, 10kA |
| Integrated power meter |
yes |
