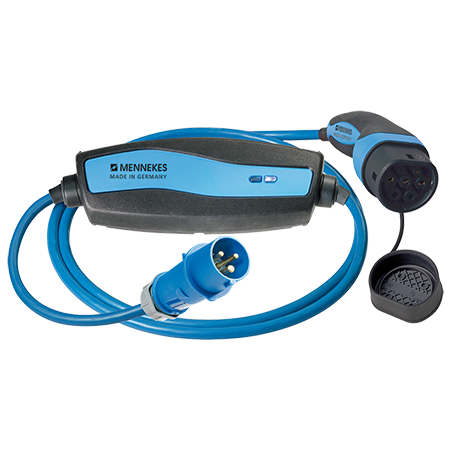

Charging Cable Mode 2 Type 2 16A 4m VDE
A mobile Mode 2 charging cable, also known as an emergency charging cable, can be used to charge up an electric or hybrid vehicle using any standard electrical outlet (Schuko) or CEE socket whenever there is no permanently installed charging station available. The IC-CPD controller unit assumes all safety-relevant functions such as temperature management and automatic charge current reduction in the case of overheating.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
- Please enter a list name
- The list name already exists
- Please enter a valid list name
Details
General data
| Article type | charging cable Mode 2 |
|---|---|
| Plug and socket vehicleside | type 2 (IEC 62196-2) |
| Plug and socket infrastructureside | CEE (IEC 60309) |
| Total cable length |
400 cm |
| Cable length wall-side |
30 cm |
| Amperage |
16 A |
| Communication with vehicle | IEC 61851-1 Mode 2 |
| Fault current function |
Tripping characteristic A Tripping residual current IΔNA = 30 mA DC residual current detection IΔNDC ≥ 6 mA |
| Standard charging cable |
IEC 62752 |
