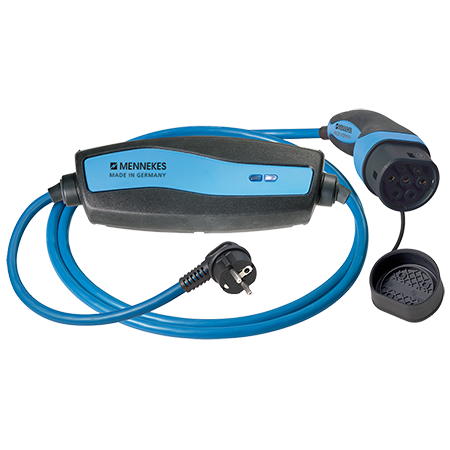

MENNEKES Charging Cable Mode 2 Type 2 13A 8m VDE 35201100065

Charging Cable Mode 2 Type 2 13A 8m VDE

A mobile Mode 2 charging cable, also known as an emergency charging cable, can be used to charge up an electric or hybrid vehicle using any standard electrical outlet (Schuko) or CEE socket whenever there is no permanently installed charging station available. The IC-CPD controller unit assumes all safety-relevant functions such as temperature management and automatic charge current reduction in the case of overheating.

  • Part no.35201100065
  • EAN4015394295112
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Details

General data
Article type charging cable Mode 2
Plug and socket vehicleside type 2 (IEC 62196-2)
Plug and socket infrastructureside SCHUKO® (IEC 60884)
Total cable length

800 cm

Cable length wall-side

150 cm

Amperage

13 A

Communication with vehicle IEC 61851-1 Mode 2
Fault current function

Tripping characteristic A

Tripping residual current IΔNA = 30 mA

DC residual current detection IΔNDC ≥ 6 mA

Standard charging cable

IEC 62752

Directives
